3D Electropalatography (EPG) system
LinguaGraph 3D is an electropalatography (EPG) system that uses state-of-the-art computer animation and 3D modelling techniques to illustrate where the tongue touches the hard-palate during speech. The 3D model, which can be rotated 360°, provides direct articulatory information in real-time.
How 3D electropalatography works

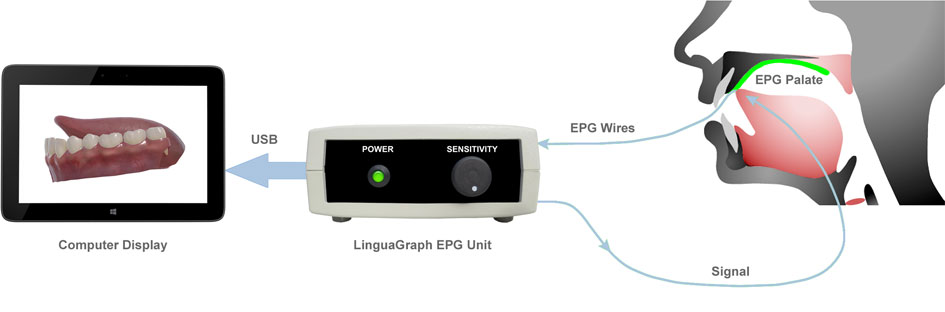

The LinguaGraph 3D electropalatography system determines tongue-palate contact by using a special artificial palate that contains 62 electrodes embedded on its lingual surface. The palate is custom-made for each user and simply clips to the upper teeth. The wires from the palate are connected to the LinguaGraph EPG unit, which is worn around the neck. A small electrical signal is passed to the user, which is conducted through the tongue to any touched electrodes. The detected tongue-palate contact patterns are then transferred to a computer via USB and used to animate a 3D model of the tongue.
3D electropalatography contact patterns
The LinguaGraph 3D electropalatography system is language independent, and provides direct articulatory information wherever the tongue touches the hard palate. The tongue-palate contact patterns below represent typical lingual consonants produced by normal English speakers:
Alveolar Stop
/t/, /d/, /n/
Alveolar Grooved
/z/, /s/
Post-Alveolar Grooved
/ʃ/, /ʒ/
Double Alveolar-Velar
/tk/, /kt/, /kl/
Velar Stop
/k/, /g/, /ŋ/
Apical
/l/
Electropalatography palate
The LinguaGraph 3D electropalatography system is compatible with the standard Reading EPG palate design. Each palate, sold separately, is custom-made for each user and simply clips to the upper teeth. In order to create an EPG palate, a qualified dentist must first take an impression of the upper palate and teeth. A plaster model is then created from the impression and sent directly to us for EPG palate manufacture.
Electropalatography palate kit
Electropalatography palate kits enable orthodontic technologists to manufacture EPG palates locally. Each kit contains:
- 62 silver electrodes with attached leads.
- EPG Connector board.
- EPG Connector board cover.
- Heat shrink tubing.
- Instruction manual.
3D electropalatography software
The 3D electropalatography system comes complete with LinguaView 3D. This 64-bit Windows compatible software incorporates state-of-the-art computer animation and 3D modelling techniques to illustrate tongue-palate contact in real-time.
Features include:
- Preview 3D tongue-palate contact in real-time
- Record 3D tongue-palate contact at up to 200 FPS with fully synchronised audio
- 3D tongue-palate contact template library
- 3D tongue-palate contact template editor
- 360° photorealistic and stylised views
- Upper and lower jaw with adjustable transparency
- File format compatible with icSpeech Professional Edition
Specification
| Supported operating systems | Windows 64-bit 10, 8 |
|---|---|
| Supported computers | Desktop, laptop, tablet |
| Connectivity | USB 1.0, 2.0, 3.0 |
| Power | USB bus powered |
| Palate type | Reading, 62 electrode |
| Resolution | 62 electrode |
| Sensitivity | Manual adjustment |
| Maximum frame rate | 200 frames per second |
| Minimum frame rate | 50 frames per second |
Get quote

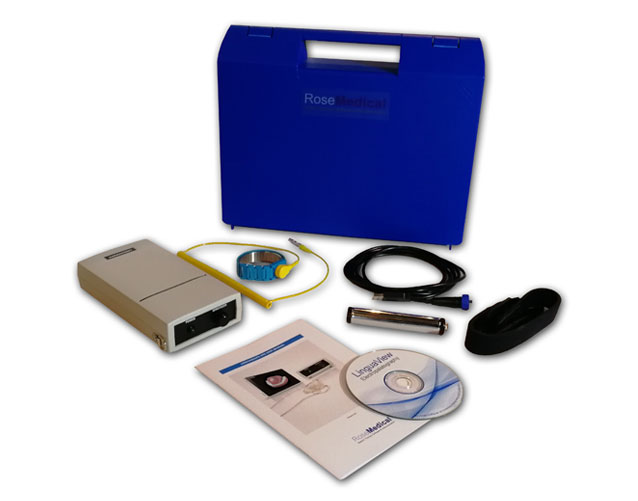

The 3D electropalatography package includes:
- LinguaGraph EPG unit
- LinguaView 3D software
- Carry case
- Neck strap
- Wrist strap
- Handgrip
- Signal cord
- 2 meter locking USB cable
- User manual
- 12 months guarantee
